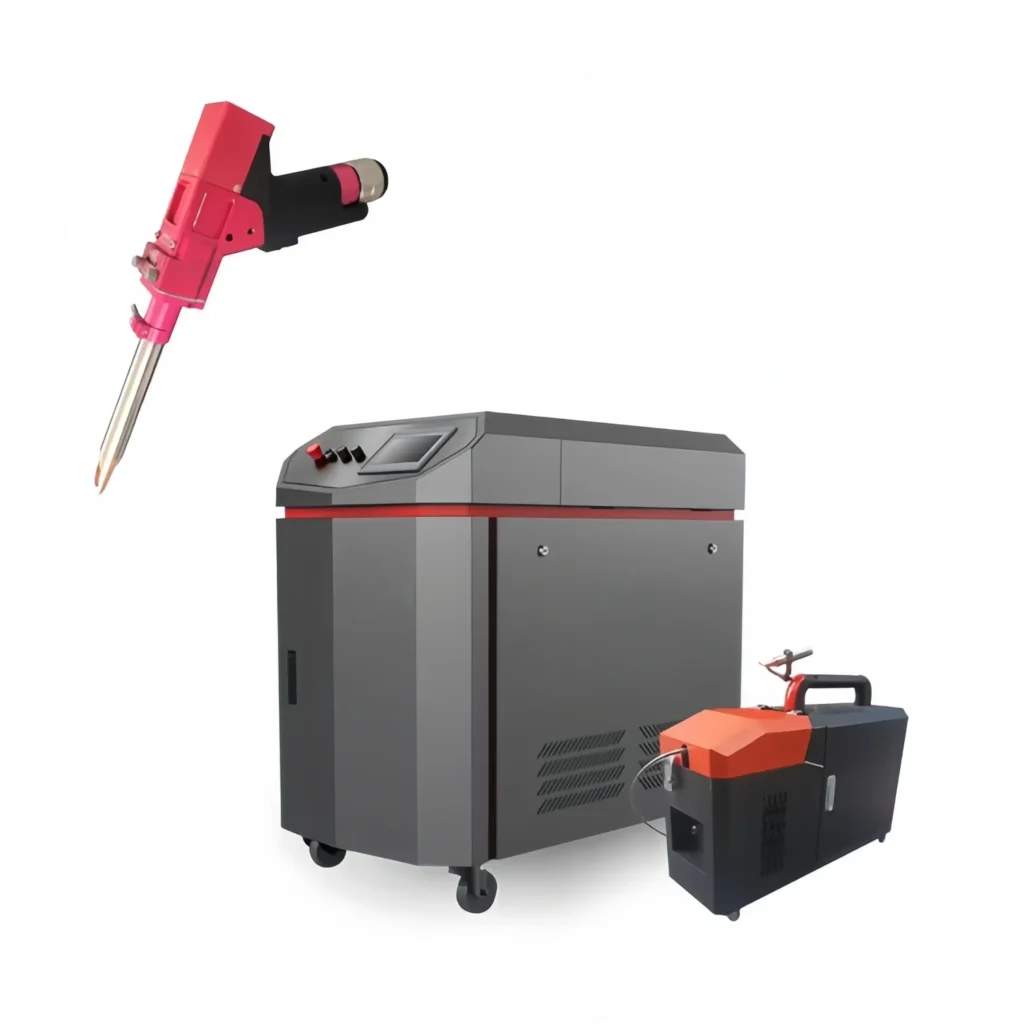

Factory-direct portable handheld laser welders, light enough for one person to carry and move by motorcycle, car or truck — built for construction sites, outdoor work, rooftops and other flexible environments. Each unit pairs a 0.5 kg fifth-generation rotary-lens gun with a 7-inch touch-screen control system, so operators are productive in about 30 minutes.
Key Specifications & Performance
| Specification | Detail |
|---|---|
| Welding gun | 0.5 kg, 5th-generation rotary-lens head |
| Operating mode | Continuous / Pulse |
| Beam wobble | 0–5 mm |
| Wire feeding | 4-wheel stepper-motor feeder |
| Optics | Rotating protective lens (~6× single-use life); dual protective lenses |
| Control | 7-inch touch screen; up to 30 saved parameter presets |
| Safety | Gas-pressure monitoring (no output if pressure is low) |
| Cooling options | Water-cooled (continuous duty) · Air-cooled (portable) |
| Power options | 800W–1500W air-cooled · 1500W/2000W/3000W water-cooled |
| Laser source | International-brand fiber laser source options available |
| Power supply | 220 V AC |
| Certification | CE coverage — available on request |
Penetration is max single-pass and material-dependent; continuous-duty figures available on request. Full per-power figures: see 1000W–1500W.
Applications & Use Cases
Sheet-metal fabrication, stainless kitchenware and furniture, doors/windows/railings, signage, automotive trim and repair, HVAC ducting and on-site maintenance — anywhere portability and clean, low-distortion welds matter.
Certifications & CE Compliance
CE coverage; certificates available on request. Destination requirements beyond CE (SASO/SABER, GCC, UKCA) addressed per market — ask for the scope for your country. No certificate images shown online.
Comparison & Selection Guide
| Configuration | Best for |
|---|---|
| Air-cooled, 800–1500W | Portable / outdoor / no chiller; wide ambient range (−30 to 60 °C) |
| Water-cooled, 1000–1500W | Sustained continuous production |
Compared with typical handheld units, our gun is 0.5 kg (vs 0.75–1.2 kg), the protective lens rotates for 6+ uses (vs single-use), and the 4-wheel stepper feed delivers wire more stably than 2-wheel designs.
Models & Configurations
Available water-cooled (1500W/2000W/3000W) or air-cooled (800W/1000W/1500W), autogenous or wire-fed, with shielding gas options (Nitrogen / Argon / Air). Contact us for the configuration that fits your work.
1-year warranty; installation, training & after-sales support available.
