Tube & Profile Cutting
A fiber-laser tube cutter with a rotating dual-chuck system — cutting round, square, angle and channel profiles to length, with holes, slots, copes and bevels in one setup. Maker-backed and built for production, with fast, accurate, low-distortion cuts.

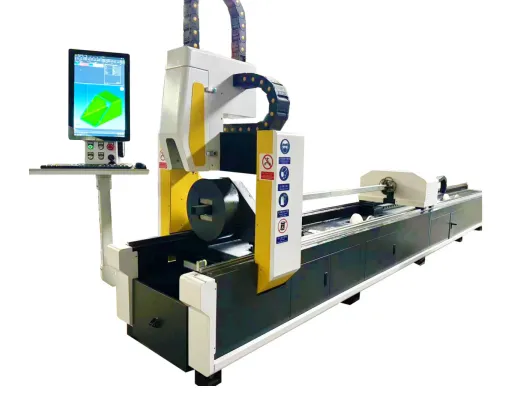

Range
Models & Cutting Capacity
Two chuck sizes on one rotating-chuck platform, plus a dedicated bevel configuration. Chuck size sets tube capacity; laser power sets wall thickness and cutting speed.
1260 · Φ20–120 mm
Raycus fiber source in 1500 W or 3000 W. Carbon steel to 14 mm and stainless to 6 mm at 1500 W; 18 mm and 10 mm at 3000 W. Entry and volume-production tiers for round tube and profile up to 120 mm edge.
2460 · Φ20–240 mm
MAX fiber source in 3000 W or 6000 W. Large-diameter round tube plus square, angle and channel profile to 240 mm edge. Wall thickness is confirmed per order against your material and duty cycle.
2460 Bevel · Φ20–240 mm
MAX 3000 W with a Raytools bevel cutting head and a 50 kVA voltage regulator. Cuts weld-prep bevels on tube ends in the same operation; 6.0 m bar length and 240 mm Z travel.
Why Tube Laser
Built for One-Setup Production
The tube rotates in the chucks while the laser cuts along it — one program parts the tube to length and adds every feature, with no drilling, sawing or secondary work.
Part to length and add every hole, slot and joint feature in one program — no secondary work.
Offcut (tail) length as little as 30 mm keeps material waste low across a run.
The tube is held between front and rear pneumatic chucks, so it stays located through the cut and finishes with low distortion.
The 2460 Bevel configuration cuts weld-prep bevels on tube ends in the same operation.
What It Is
What Is Tube Laser Cutting?
A tube laser cutting machine uses a focused fiber-laser beam and a rotating chuck system to cut round, square, angle and channel profiles — to length and with holes, slots, copes and bevels in one setup. The tube is held between front and rear pneumatic chucks for fast, accurate, low-distortion cuts. Positioning holds to ±0.05 mm/m and offcut length is as little as 30 mm.
Specifications
Key Specifications & Performance
Three power builds on one rotating-chuck platform. Values below are typical; final specification is confirmed per order.
| Feature | Detail |
|---|---|
| Laser power | 1260: Raycus 1500 W or 3000 W · 2460 and 2460 Bevel: MAX 3000 W or 6000 W |
| Tube diameter | 1260: Φ20–120 mm · 2460 and 2460 Bevel: Φ20–240 mm |
| Profile edge (square / angle / channel) | 1260: ≤ 120 mm · 2460 and 2460 Bevel: ≤ 240 mm |
| Wall thickness — carbon steel | 1260: ≤ 14 mm (1500 W) · ≤ 18 mm (3000 W) · 2460: confirmed per order |
| Wall thickness — stainless | 1260: ≤ 6 mm (1500 W) · ≤ 10 mm (3000 W) · 2460: confirmed per order |
| Materials | Carbon steel, stainless, aluminum and copper tube & profile |
| Max tube length | 1260 and 2460: up to 6.5 m · 2460 Bevel: up to 6.0 m |
| Positioning accuracy | ±0.05 mm/m |
| Repeatability | ±0.03 mm/m |
| Offcut (tail) length | as low as 30 mm |
| Power supply | 380 V / 50 Hz, three-phase five-wire, ±10% |
| Axis travel | 1260: X 120 / Y 6500 / Z 120 mm · 2460: X 240 / Y 6500 / Z 120 mm · 2460 Bevel: X 240 / Y 6000 / Z 240 mm |
| CNC system | SJTU-cnc |
| Key components | Raytools cutting head · HeChuan servo (1260, 2460) or Leadshine servo (2460 Bevel) · Japan Shimpo reducer (2460 at 3000 W, 2460 Bevel) · Taiwan Kotec linear guide and Taiwan Vastun rack (2460 Bevel) · Hanli industrial chiller · Chint low-voltage components |
| Installation requirements | Dry filtered air at 1.6 MPa · ambient 0–40 °C, humidity ≤ 80% · level dry concrete floor 200 mm thick |
Maximum single-pass wall thickness is material-dependent; continuous-duty and higher-power figures available on request.
Applications
Applications & Use Cases
Tube laser cutting suits repeatable profile work across furniture, construction, transport and fabrication.
Comparison
Comparison & Selection Guide
Why a rotating-chuck tube laser — and how to pick a build.
Match chuck size to your largest tube and power to your wall thickness and throughput.
Compliance
Certifications & CE Compliance
Machines are CE-marked, with CE documentation available on request. Destination requirements (SASO/SABER, GCC, UKCA) are handled per market.
Installation
On-site or remote on-boarding for your team.
Training
Operator training on setup, nesting and CNC.
After-sales
Ongoing support and spare parts, worldwide.
1-Year Warranty
One-year warranty with installation, training and after-sales support.
Get Started
Get a Quote on Your Tube Laser Cutter
Tell us your tube profile, diameter, wall thickness and throughput and we’ll spec the right machine and power.
