Tube & Sheet Cutting
One fiber-laser platform that cuts both flat sheet and tube — carbon steel, stainless, aluminum and copper — switching between plate and tube work with no tooling change. Maker-backed and built for production.
Range
Models & Power Options
One machine, both jobs. Two bed sizes — 3015 and 2060 — each configured by laser power to your material and thickness. Shipping builds are 3 kW and 6 kW; higher tiers are available on request.
3015 · 3 kW · sheet 3000×1500 mm
MAX 3000 W. Sheet to 3000×1500 mm plus tube from Φ20 to Φ240 mm. Carbon steel up to 18 mm, stainless up to 10 mm. X 1550 / Y 3050 / Z 120 mm travel with a 3000 kg worktable load.
3015 · 6 kW · sheet 3000×1500 mm
MAX 6000 W on the same 3000×1500 mm bed. Carbon steel up to 27 mm, stainless up to 18 mm, with a minimum kerf of 0.08–0.1 mm.
2060 · 6 kW · sheet 2000×6000 mm
MAX 6000 W with a long 2000×6000 mm bed and tube capacity to Φ245 mm. Carbon steel up to 27 mm, stainless up to 18 mm; Weihong NC Studio control.
Why Tube & Sheet
Plate and Tube on One Machine
Switch between flat sheet and tube cutting with no tooling change — one platform covers both.
Cut flat sheet and tube on the same machine with no tooling removal between jobs.
Twin chucks hold tube from Φ20 to Φ245 mm, up to 6, 9 or 12 m long.
An optional bevel head prepares weld-ready edges on plate and tube.
Rapid traverse of 70–100 m/min depending on build, with ±0.03 mm/m positioning for accurate, repeatable parts.
What It Is
What Is a Tube & Sheet Laser Cutter?

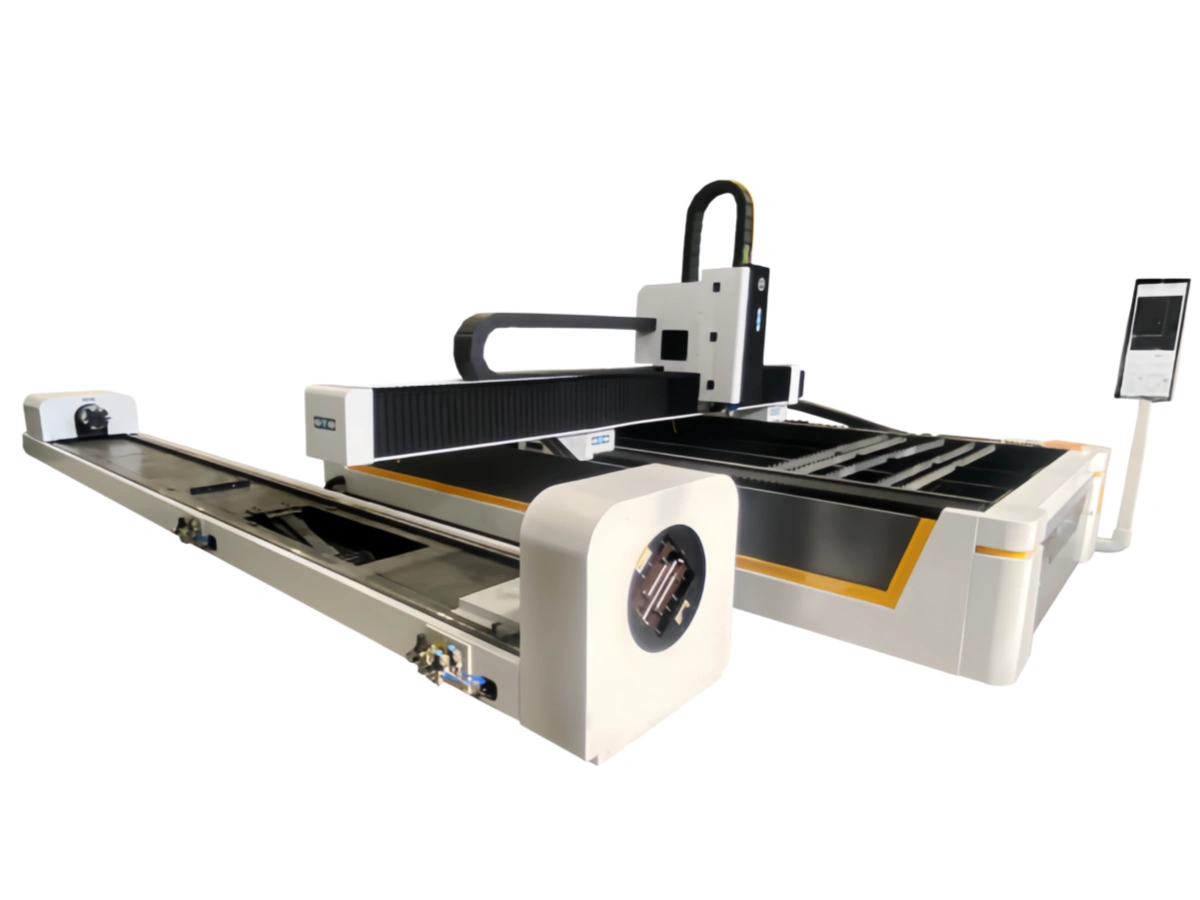

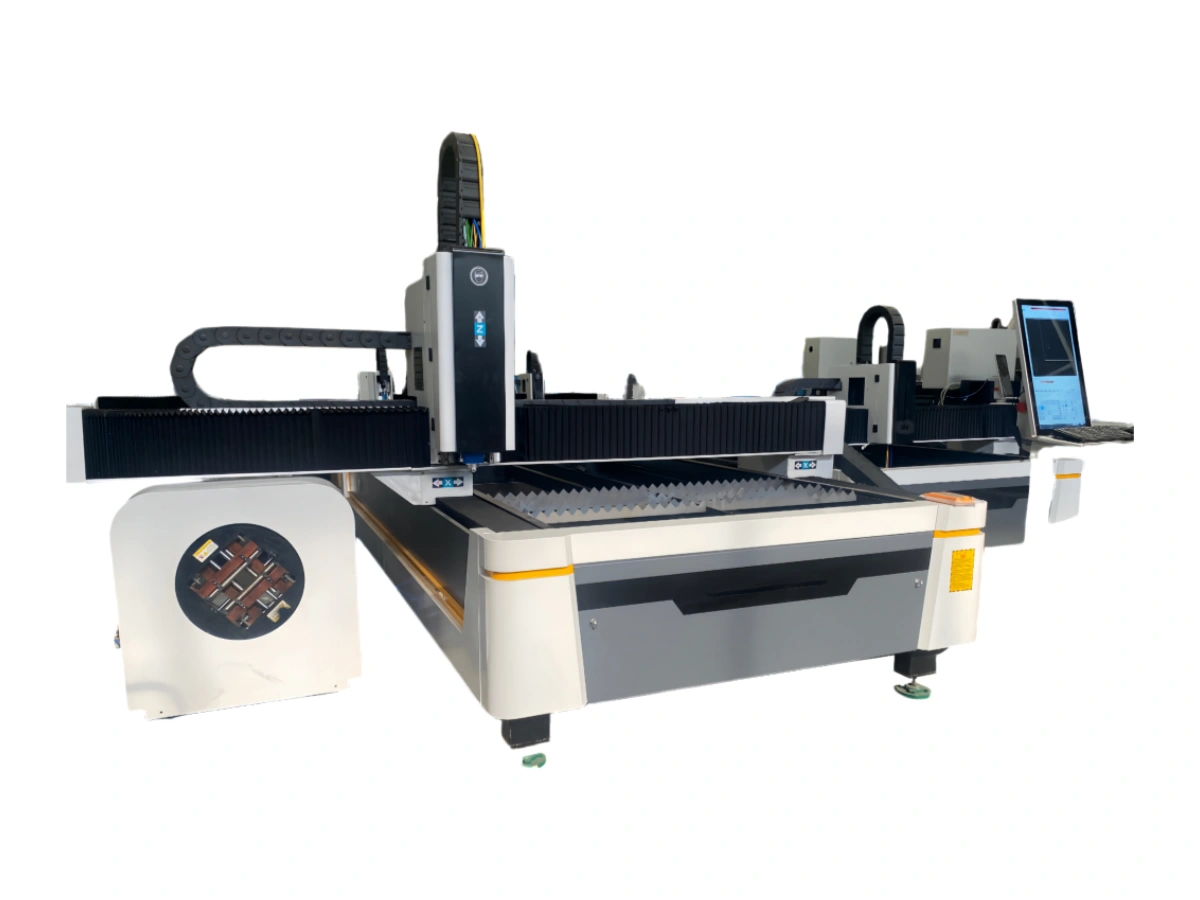

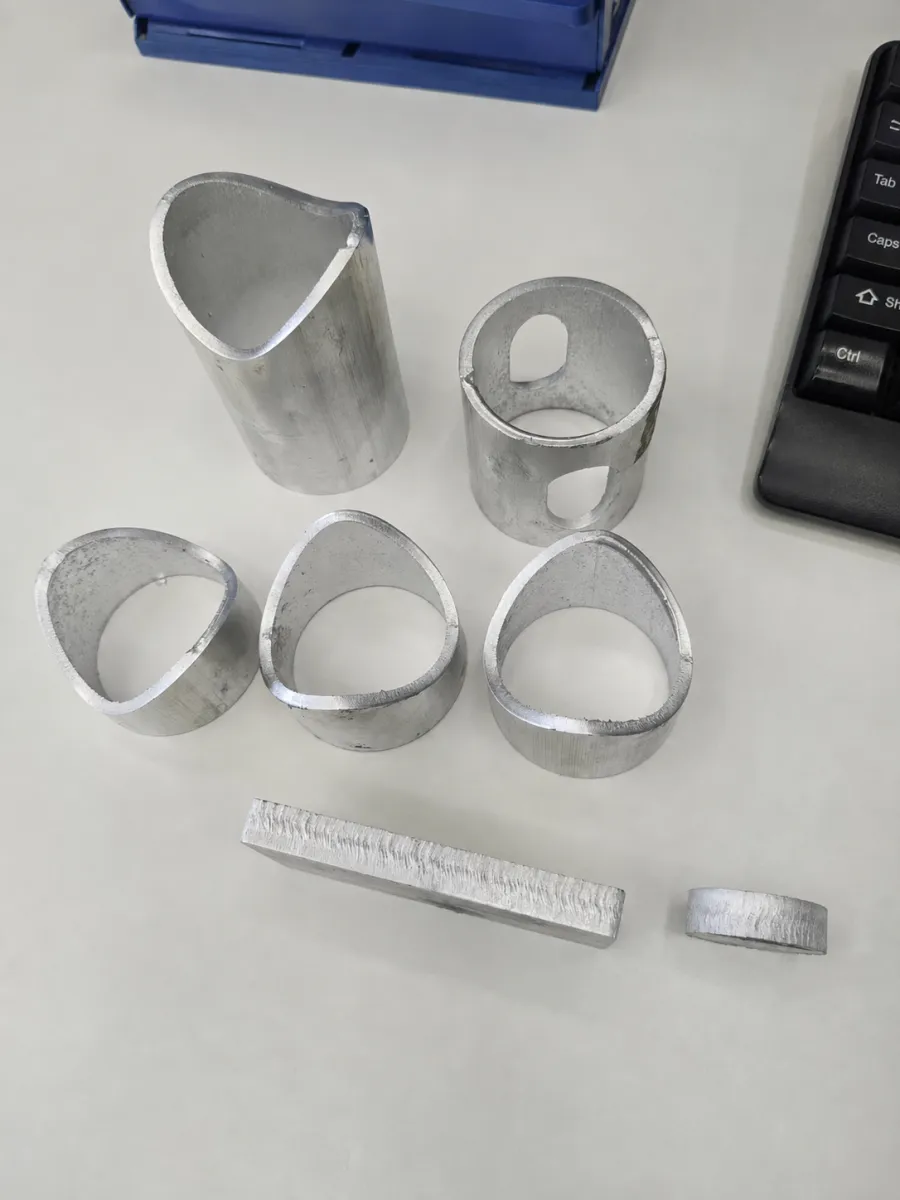

A tube and sheet laser cutting machine combines flatbed sheet cutting and rotary tube cutting in one fiber-laser system. Flat sheet is cut on the table; tube and profile are held between dual chucks and cut in the round — parting to length and adding holes, slots and copes. Switching between plate and tube work needs no tooling change, so one machine covers both jobs.
Specifications
Key Specifications & Performance
Typical values across the range; final specification is confirmed per order.
| Feature | Detail |
|---|---|
| Laser power | Shipping builds: MAX 3000 W or 6000 W · optional tiers 1500 / 12000 / 20000 / 30000 W |
| Sheet formats | 3015: 3000×1500 mm · 2060: 2000×6000 mm · optional 4000×1500, 6000×1500, 4000×2000 and 6000×2000 mm |
| Sheet — carbon steel | ≤ 18 mm (3 kW) · ≤ 27 mm (6 kW) |
| Sheet — stainless | ≤ 10 mm (3 kW) · ≤ 18 mm (6 kW) |
| Tube diameter | 3015: Φ20–240 mm · 2060: Φ20–245 mm — round, square, angle and channel; rotary axis 240×6000 / 245×6000 mm |
| Max tube length | 6 / 9 / 12 m |
| Rapid traverse | 70–100 m/min depending on build; acceleration up to 1.5 G |
| Positioning / repeatability | ±0.03 mm/m / ±0.02 mm/m |
| Cooling | Industrial water chiller (Hanli / Teyu) |
| Power supply | 380 V 3-phase / 50–60 Hz · total connected load 7.5–150 kW |
| Kerf width | 0.08–0.1 mm |
| Axis travel (3015 · 3 kW) | X 1550 / Y 3050 / Z 120 mm · worktable load 3000 kg |
| CNC and cutting head | Selectable CNC — Jiaqiang, Weihong, Bochu or Fangling · Raytools cutting head |
| Gas pressure | N₂ 15–20 bar · O₂ 6–8 bar · air 15–30 bar |
Tube wall-thickness capacity is confirmed per profile and power on request. Continuous-duty and higher-power tiers (to 30 kW) available on request.
Applications
Applications & Use Cases

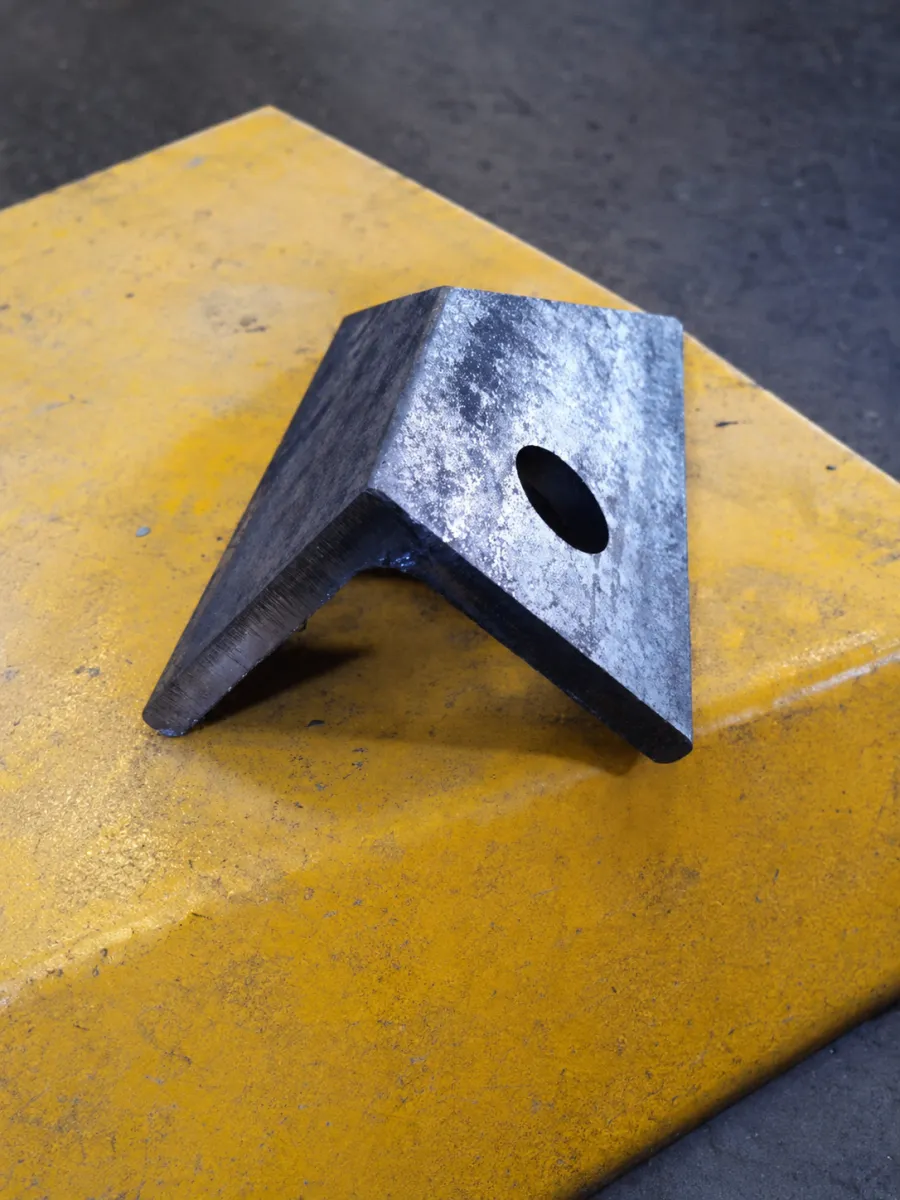

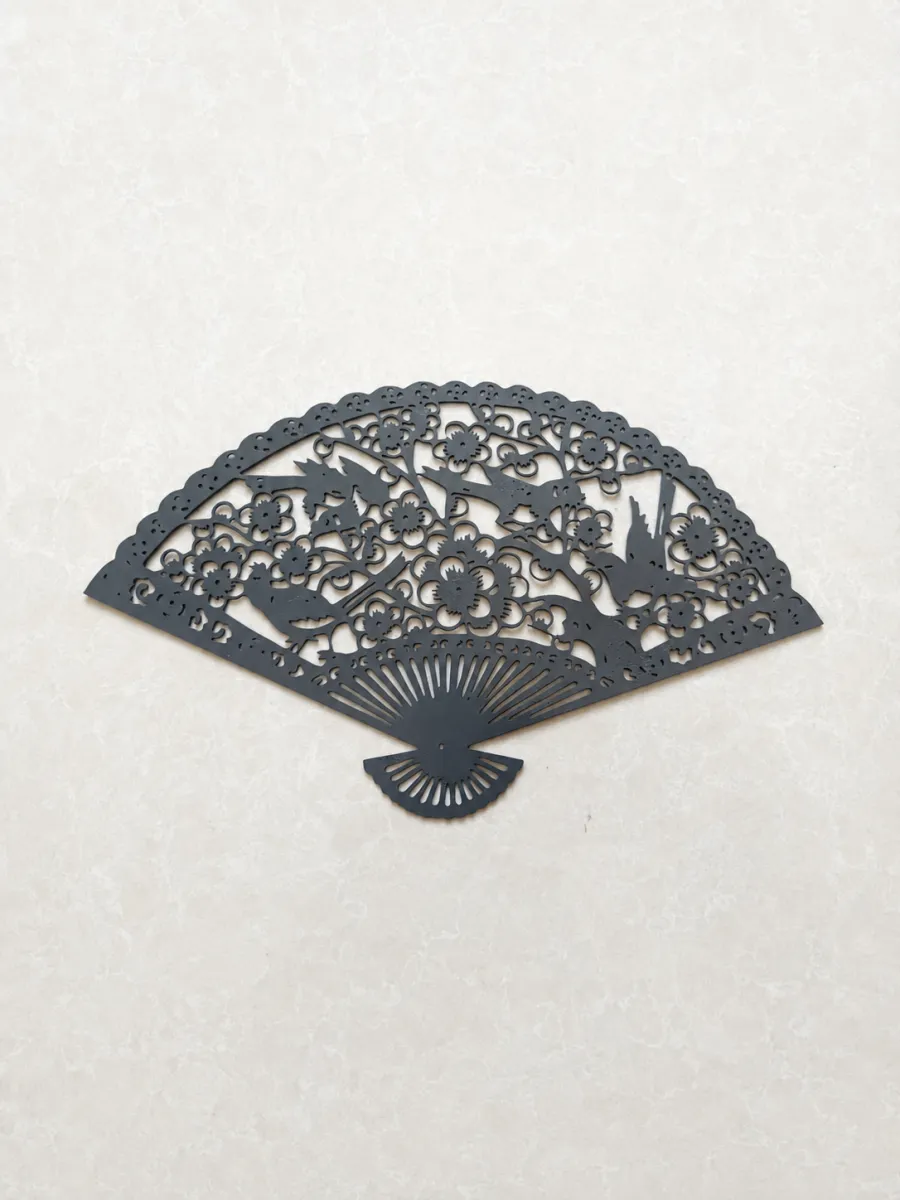

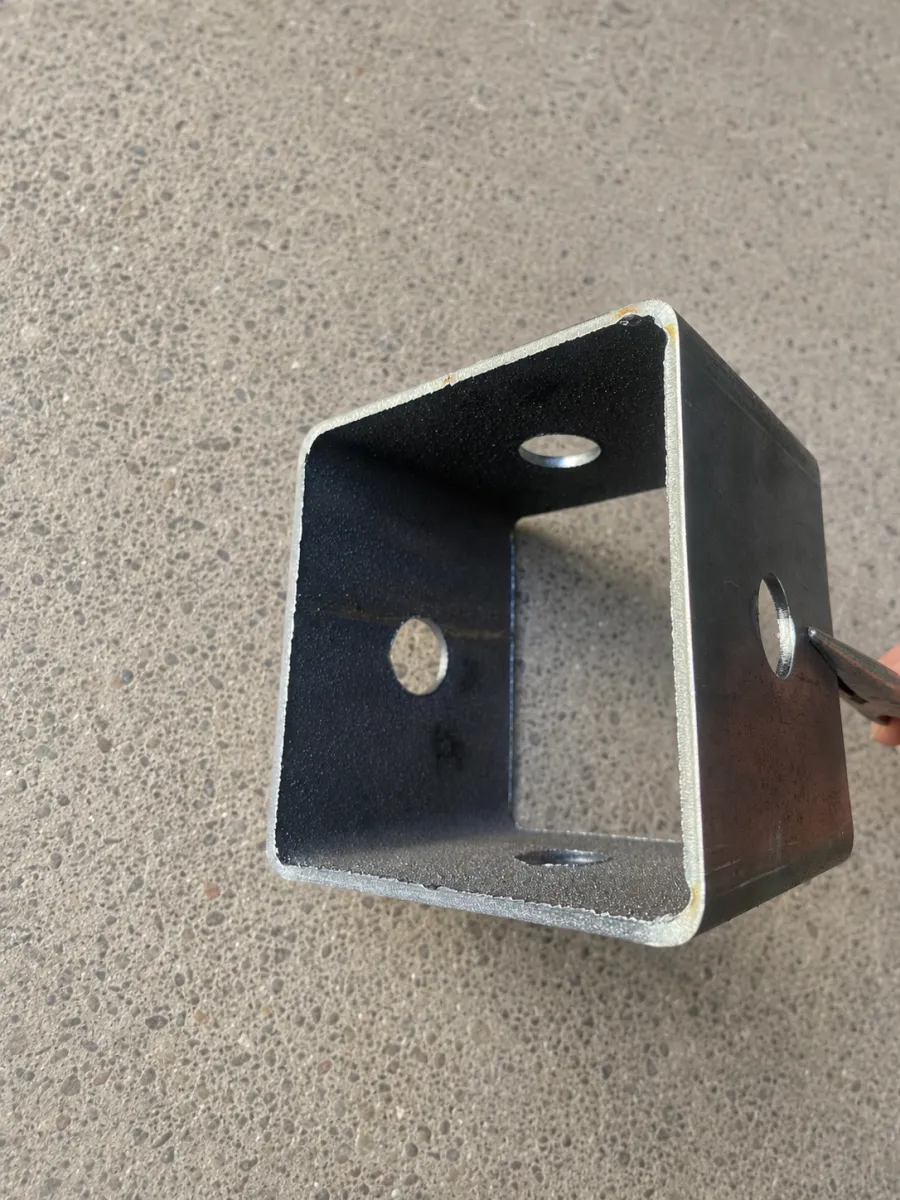

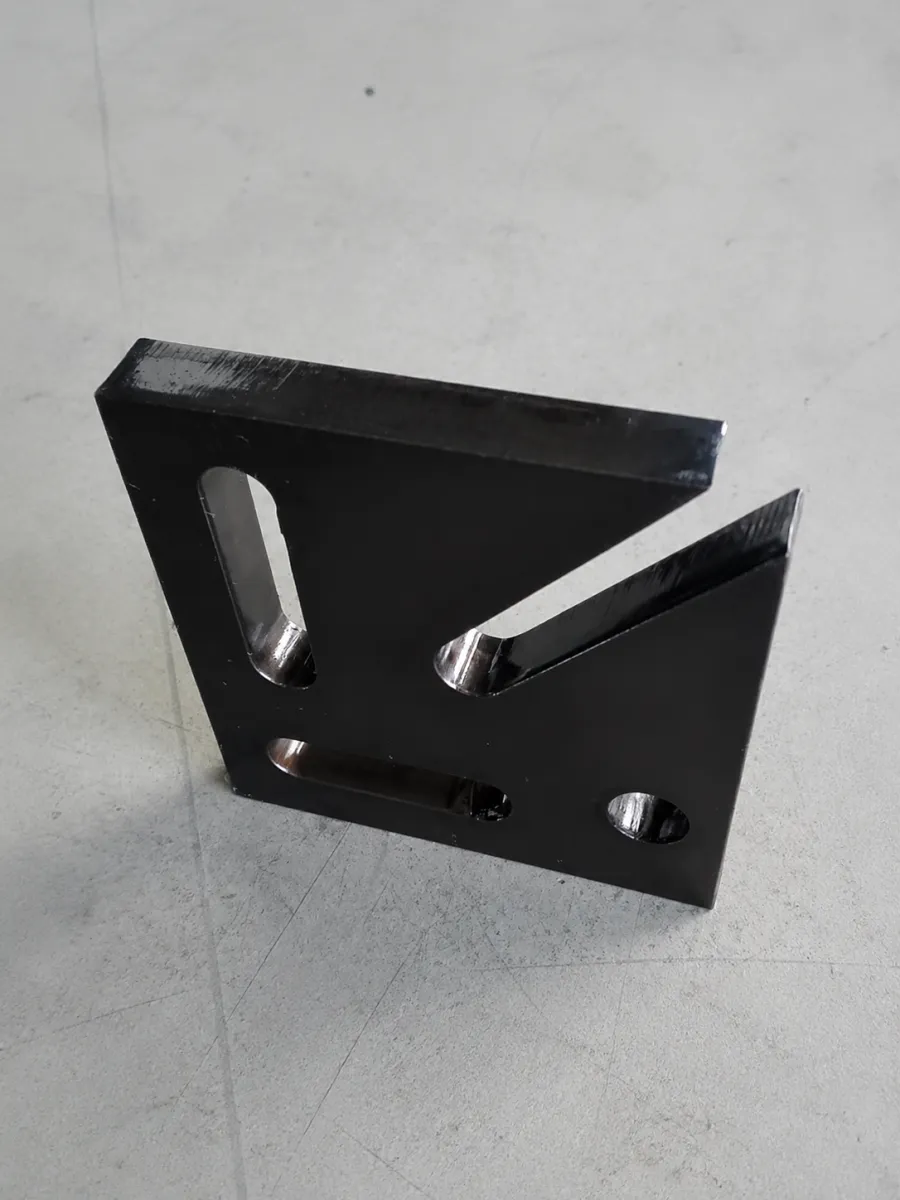

One machine for fabricators who cut both plate and tube.
Comparison
Comparison & Selection Guide
Why a combined tube-and-sheet machine — and how to configure it.
Match power to your sheet thickness and chuck size to your largest tube; add bevel and dust extraction as needed.
Compliance
Certifications & Compliance
CE marked; FDA compliance (21 CFR 1040) and SGS test reports available on request.
Installation
On-site installation and commissioning available on a chargeable basis, worldwide.
Training
Operator training on sheet and tube cutting and CNC, on site or online.
After-sales
Ongoing support and spare parts, worldwide.
1-Year Warranty
One-year machine warranty with installation, training and after-sales support; the laser source carries a two-year warranty. Consumables such as lenses, mirrors and nozzles are excluded.
Get Started
Get a Quote on Your Tube & Sheet Laser Cutter
Tell us your sheet size, material, thickness and tube profile and we’ll spec the right machine and power.
