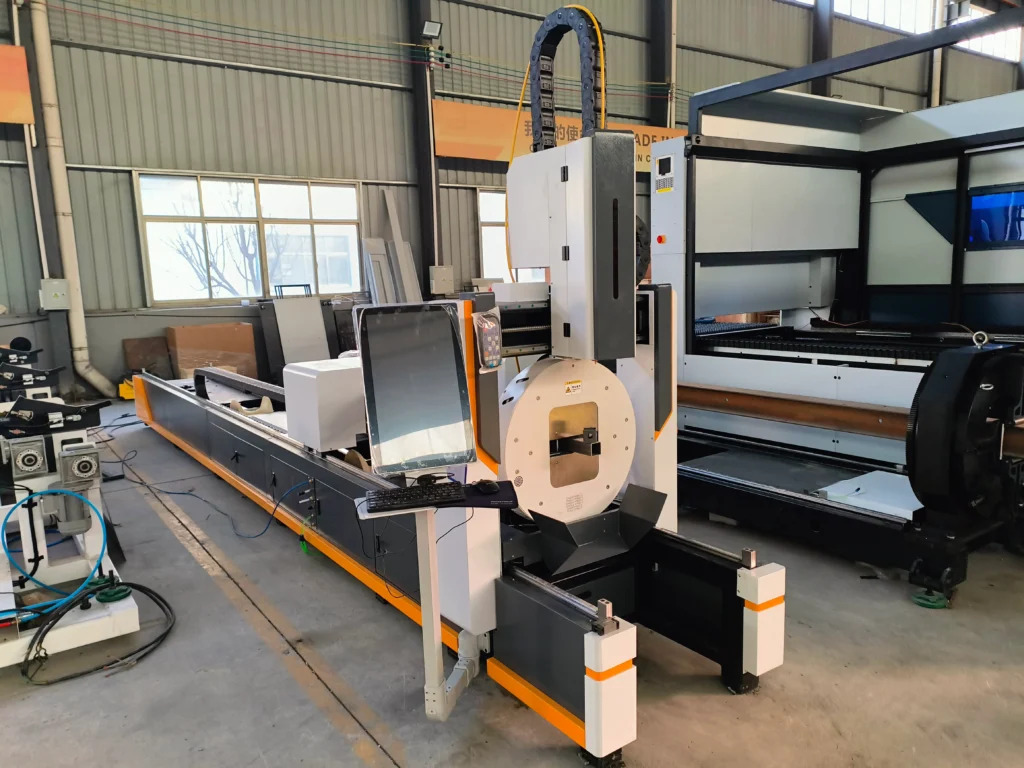

Factory-direct fiber tube cutters make clean, accurate cuts in steel tube and profile — round, square, angle and channel — parting to length and adding holes, slots, copes and bevels in a single setup, with little distortion.
Cutting Capacity for Steel Tube
| Tube capacity | Laser power | Carbon steel | Stainless steel |
|---|---|---|---|
| Φ20–120 mm | 1500 W | up to 14 mm | up to 6 mm |
| Φ20–120 mm | 3000 W | up to 18 mm | up to 10 mm |
| Φ20–240 mm | 6000 W | up to 18 mm | up to 10 mm |
Maximum single-pass wall thickness, material-dependent; continuous-duty figures available on request. Tube length up to 6.5 m, offcut as low as 30 mm. For the full power range, see laser cutter power options.
How to Cut Steel Tube
- Import the tube program (reads SolidWorks IGS) with all features.
- Load the tube into the front and rear pneumatic chucks; the variable-diameter support holds long tube.
- Run one-click square-tube leveling; the system finds the rotation center automatically.
- Select power and assist gas for the material and wall thickness.
- Cut to length, adding holes, slots, copes and bevels in one pass as the tube rotates.
- Unload; offcut is as little as 30 mm.
Applications & Use Cases

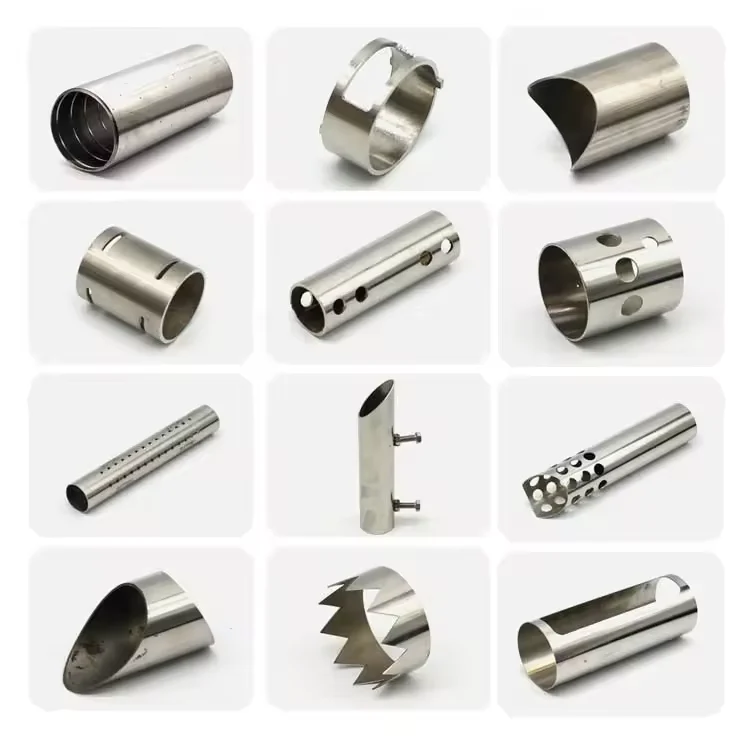

Railings and balustrades, furniture and display frames, fitness and agricultural equipment, automotive and structural profiles, and steel fabrication.
CE & Compliance
CE-marked; CE, FDA and SGS documentation available on request.
Choosing the Right Machine for Tube
Pick chuck size by your largest profile and power by wall thickness and volume; add the bevel configuration if you weld-prep pipe ends. Tell us your tube range and we’ll recommend a setup.
Request a Quote · Compare Power Options
1-year warranty; installation, training & after-sales support available.
